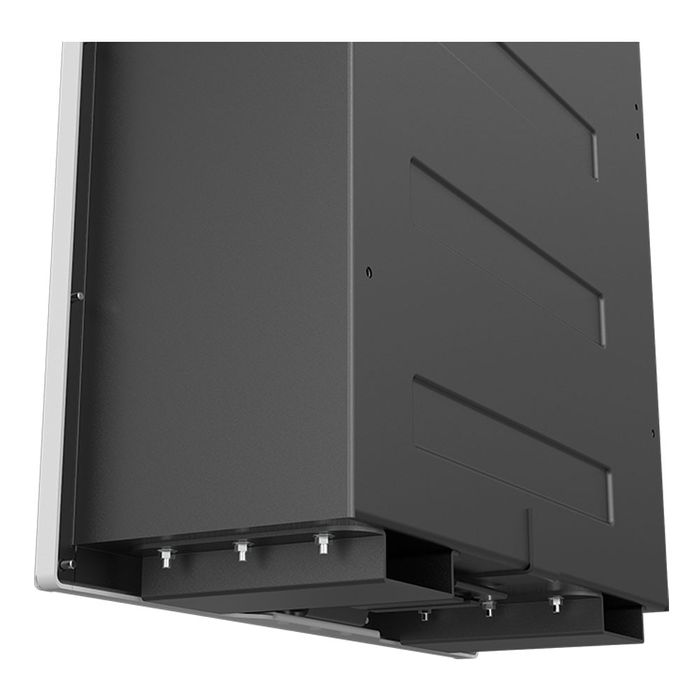

SBS 5.0kWh High Voltage Battery Module (AST06647)
)
)
)
SBS 5.0kWh High Voltage Battery Module (AST06647)
The SBS050 Battery Module is a 5.12kWh high-voltage battery module designed for use as part of the SBS Battery System. It is not a standalone AC battery and must be installed with a compatible hybrid inverter and the required battery system components.
Featuring advanced LiFePO4 prismatic battery cells, the SBS050 offers excellent safety, efficiency, and long-term reliability. Its slim, compact design makes it suitable for both indoor and outdoor installations, while the modular system allows flexible expansion to suit different energy storage requirements.
The battery system supports stacking from 1 to 4 modules in parallel, providing flexible capacity options from 5.12 kWh up to 20.48 kWh.
- Battery Type: LiFePO4 Prismatic Cell
- Nominal Voltage: 102.4 V
- Up to 100 % usable energy
- Communication Interface: CAN
- Degree of Protection: IP65
- Refined battery management
- No need for a junction box for expansion
- Slim design with a depth of only 182mm
- Doesn't include any cabling or interconnect cables when purchased (*)
- Weight: 58 kg
- 10-year product warranty
(*) Always check compatibility and required components before installation.
)
)
)
)
)
)
)
)
)
)
